Selection of Adjustable Multiple Spindle Heads
HERE IS A LIST OF OUR TWO AND THREE SPINDLE “IN-LINE” MODELS. |
|
| MSH MODEL | MULTIPLE SPINDLE HEAD SPECIFICATIONS |

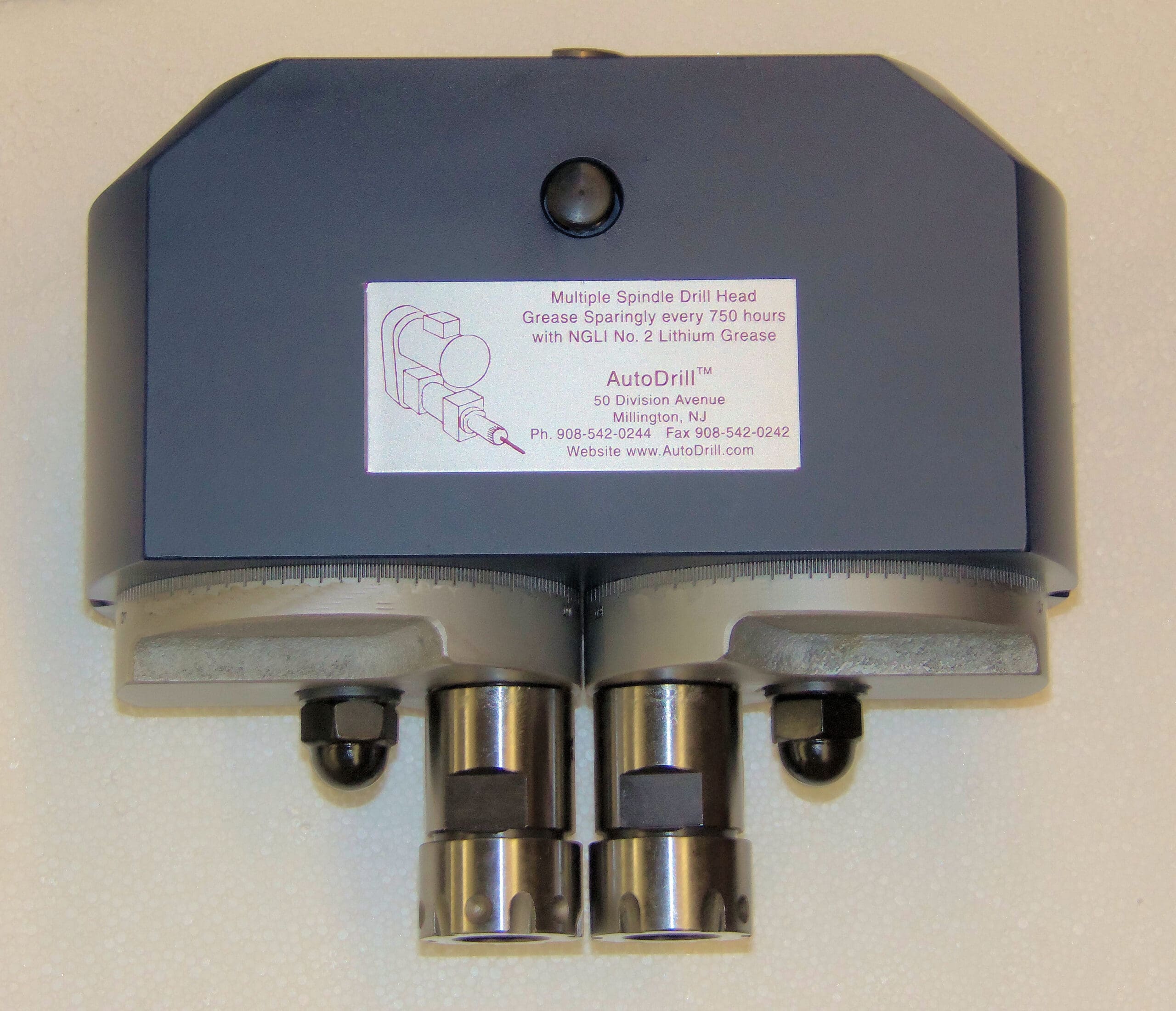

| MS2-5 | Two Spindle Drill Head, Adjustable for 0.532″ to 2.893″ C-C (13.5-73.5mm), ER8 Style Spindles. Maximum Tool Shank Capacity 3/16″ or 5 MM. |
| MS2-7 | Two Spindle Drill Head, Adjustable for 0.709″ to 3.543″ C-C (18-90mm), ER11 Style Spindles. Maximum Tool Shank Capacity 1/4″ or 7MM. |
| MS2-10 | Two Spindle Drill Head, Adjustable for 0.867″ to 4.173″ C-C (22-106mm), ER16 Style Spindles. Maximum Tool Shank Capacity 3/8″ or 10MM. |
| MS2-13 | Two Spindle Drill Head, Adjustable for 1.103″ to 4.960″ C-C (28-126mm), ER20 Style Spindles. Maximum Tool Shank Capacity 1/2″ or 13MM. |
| MS2-16 | Two Spindle Drill Head, Adjustable for 1.418″ to 6.456″ C-C (36-164mm), ER25 Style Spindles. Maximum Tool Shank Capacity 5/8″ or 16MM. |
| MS3L-5 | Triple Spindle In-Line Drill Head, Adjustable for 0.552″ to 1.732″ C-C (14-44mm), ER8 Style Spindles. Maximum Tool Shank Capacity 3/16″ or 5MM. (See note below) |
| MS3L-7 | Triple Spindle In-Line Drill Head, Adjustable for 0.788″ to 2.204″ C-C (20-56mm), ER11 Style Spindles. Maximum Tool Shank Capacity 1/4″ or 7MM. (See note below) |
| MS3L-10 | Triple Spindle In-Line Drill Head, Adjustable for 0.867″ to 2.519″ C-C(22-64mm), ER16 Style Spindles. Maximum Tool Shank Capacity 3/8″ or 10MM. (See note below) |
| MS3L-13 | Triple Spindle In-Line Drill Head, Adjustable for 1.103″ to 2.992″ C-C (28-76mm), ER20 Style Spindles. Maximum Tool Shank Capacity 1/2″ or 13MM. (See note below) |
| MS3L-16 | Triple Spindle In-Line Drill Head, Adjustable for 1.418″ to 3.937″ C-C (36-100mm), ER25 Style Spindles. Maximum Tool Shank Capacity 5/8″ or 16MM. (See note below) |
| NOTE: | On three spindle “in-line” models, you can use the outer spindles only and double the maximum C-C shown on some applications. This often allows you to use a less expensive head for greater C-C reach. |
HERE IS A LIST OF OUR THREE AND FOUR SPINDLE BCD OR PCD MODELS. |
|
| MSH MODEL | MULTIPLE SPINDLE HEAD SPECIFICATIONS |

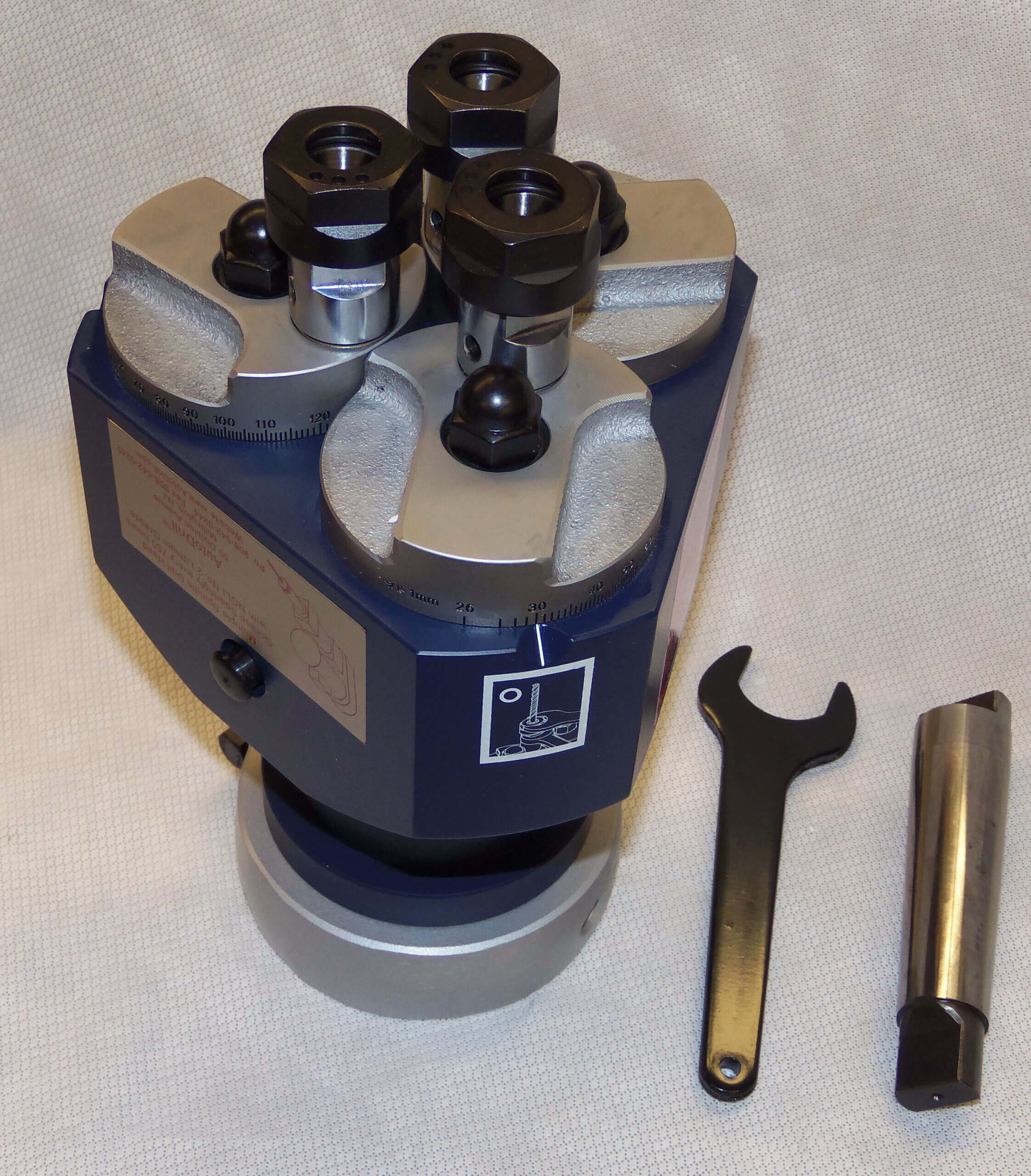

| MS3C-5 | Three Spindle Drill Head, Adjustable for 0.867″ to 3.228″ BCD/PCD (22-82mm), ER8 Style Spindles. Maximum Tool Shank Capacity 3/16″ or 5 MM. |
| MS3C-7 | Three Spindle Drill Head, Adjustable for 1.103″ to 3.937″ BCD/PCD (18-100mm), ER11 Style Spindles. Maximum Tool Shank Capacity 1/4″ or 7MM. |
| MS3C-10 | Three Spindle Drill Head, Adjustable for 1.260″ to 4.566″ BCD/PCD (32-116mm), ER16 Style Spindles. Maximum Tool Shank Capacity 3/8″ or 10MM. |
| MS3C-13 | Three Spindle Drill Head, Adjustable for 1.497″ to 5.433″ BCD/PCD (38-138mm) ER20 Style Spindles. Maximum Tool Shank Capacity 1/2″ or 13MM. |
| MS3C-16 | Three Spindle Drill Head, Adjustable for 2.048″ to 7.086″ BCD/PCD (52-180mm), ER25 Style Spindles. Maximum Tool Shank Capacity 5/8″ or 16MM. |
| MS4C-5 | Four Spindle Drill Head, Adjustable for 1.339″ to 3.700″ BCD/PCD (34-94mm), ER8 Style Spindles. Maximum Tool Shank Capacity 3/16″ or 5 MM. |
| MS4C-7 | Four Spindle Drill Head, Adjustable for 1.654″ to 4.488″ BCD/PCD (42-114mm), ER11 Style Spindles. Maximum Tool Shank Capacity 1/4″ or 7MM. |
| MS4C-10 | Four Spindle Drill Head, Adjustable for 1.890″ to 5.196″ BCD/PCD (48-132mm), ER16 Style Spindles. Maximum Tool Shank Capacity 3/8″ or 10MM. |
| MS4C-13 | Four Spindle Drill Head, Adjustable for 2.284″ to 6.220″ BCD/PCD (58-158mm), ER20 Style Spindles. Maximum Tool Shank Capacity 1/2″ or 13MM. |
| MS4C-16 | Four Spindle Drill Head, Adjustable for 3.071″ to 8.110″ BCD/PCD (78-206mm), ER25 Style Spindles. Maximum Tool Shank Capacity 5/8″ or 16MM. |
AutoDrill stocks both Adjustable Multi-Drill Heads and Drill Press Adapters for fast delivery whenever possible. The adjustable Multi-Drill Spindle Heads quickly drill two, three or four holes at one time on a standard drill press, milling machine, self-feeder drill, etc.
Adjustable multi-drill heads are available in ER8, ER11, ER16, ER20, ER25, Male Jacobs Taper, motor shaft, ASA or “Automotive Shaft” as well as many other spindle styles. Please ask if you have a specific need.
PARTIAL LIST OF MACHINE MANUFACTURERS WE CAN MAKE HEADS FOR:
| ACER | ARO | AutoDrill | Atlas | Birmingham | Black & Decker |
| Bridgeport | Buckeye | Central Machinery | Clausing | Commander | Craftsman |
| Dayton | Delta | Desoutter | Donau | Dumore | E2 |
| Ellis | Ettco | Euroma | Fanji | Govro-Nelson | Grainger |
| Grizzly | Harbor Freight | Hause | Ibarmia | JET | Jiffy-Drill |
| Manhattan Supply | Moline | Newtric (Sugino) | Natco | Powermatic | Redux-Euroma |
| Ritter | Schrader Bellows | Servusa | Setco | Somex | Speedycut |
| Sugino | Rigid | Rockwell | Ryobi | Suhner | Walker Turner |
| Wilton | Triax | Zagar | Universal Automatic | Ingersoll-Rand | Many, many more… |
Please CONTACT US to discuss your application and receive prompt product cost, literature and technical help.
